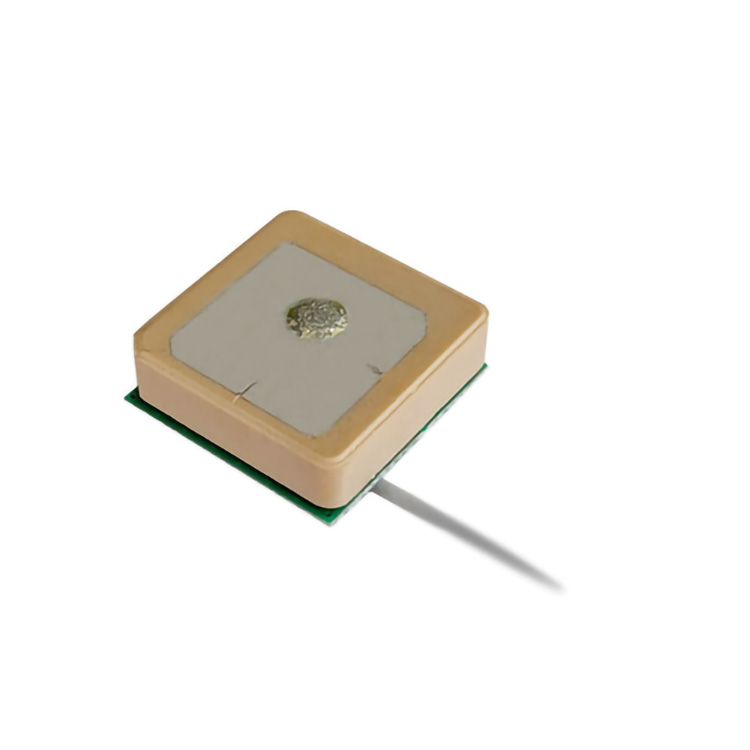

GPS ceramic built-in antenna AC-GPS-N187

From the supplier and OEM business from the wireless infrastructure to the wireless communication carrier, the full set of new antenna products have mainly included: the waterproof antenna used in harsh environments, using patch technology broadband antennas, and has a plate antenna of electric control inclination. High performance miniaturized antenna and broadband microwave devices in each system. The company has become an excellent supplier in the antenna industry, with a good reputation in the same industry.。

Contact information

Product Details

Electrical parameter

The antenna frequency is 1575.42MHz ± 3 MHz

Bandwidth ± 5

Gain 5DBIC

Polarization RHCP

Senate \\u003c1.5

Input impedance 50Ω

Peak gain ＞ 3DBIC Based on 7 × 7cm Group Plane

Size 18x18x7mm

Breastr amplifier gain 16 ± 2db

Attenuation 1.5DB

DC voltage 2.2-5.0V

DC current 5-15mA

Voltage Wave \\u003c2.0

Mechanical parameter

Mechanical parameter line type 1.13

Line length 100mm

Connect U.FL

Environmental parameters outer cover material Ceramics

Work temperature -40 ℃ ~ 80 ℃

Humidity up to 75%

Vibration 10 to 55Hz with 1.5mm Amplitude 2 Hours

Weight 8G
